FSPREA40001 - Auxiliary Spindle - 6000RPM
Electric Spindle Series
CONSUNT NOW
Electric Spindle Series

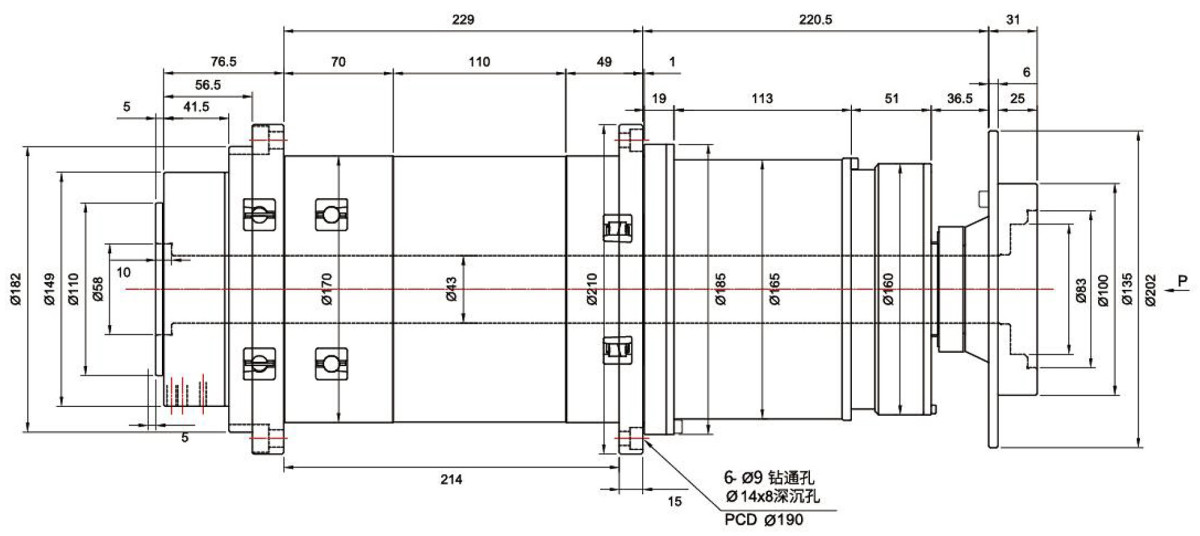

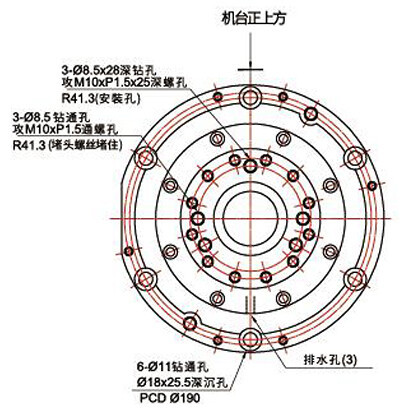

Structural Diagram

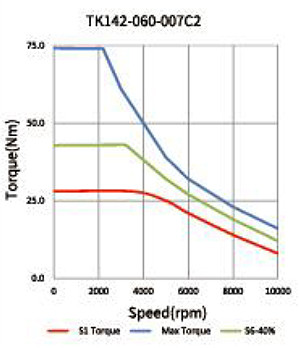

Parameter






Rated vauleLimited vaule
Rated torque28 (Nm)Locked rotor torque29 (Nm)
Rated speed3500(rpm)Blockage current44 (A)
Rated power10.3 (Kw)Peak torque74 (Nm)
Rated current42 (A)Peak current 130(A)
Back electromotive voltage209 (V)Maximum speed6000(rpm)
Parameter specifications
Maximum speed6000RPMTransmission modeElectric spindle
Spindle ClawA2-4Positioning methodEncoder A860-2150-T401
Main spindle apertureΦ43 (using a Φ35 hole for pull probe)Spindle weightAbout 70 kg
Peilin specificationsFront bearing7015-5*2Rear bearingN1012Front cover surface treatmentBlacking treatment
Peilin lubrication methodGreaseInstallation methodHorizontal
Peilin preloading methodPositioning preloadingSpindle balance levelG1(IS01940)
Peilin temperature rise controlRoom temperature within+20℃Brake discYes
