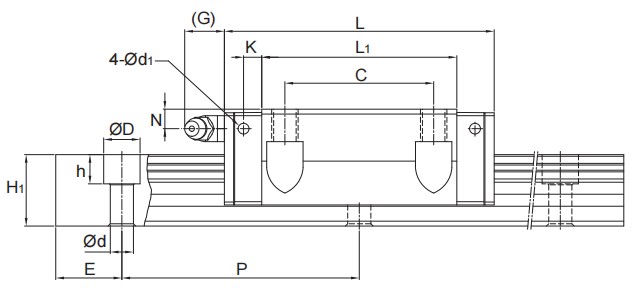

| Unit mm |
| Model No | External dimension | Carriage dimension |
Height
H | Width
W | Length
L | W₂ | H₂ | B | C | Sxl | L | T | T₁ | T₂ | N | G | K | d, | Grease
Nipple |
| MSA 15E | 24 | 47 | 56.3 | 16 | 4.2 | 38 | 30 | M5X7 | 39.3 | 7 | 11 | 74.3 | 7 | 5.4 | 3.3 | G-M4 |
MSA 20E
MSA 20 LE
MSA 20 TE | 30 | 63 | 72.9
88.8
51.1 | 21.5 | 5 | 53 | 40
40
- | M6×10 | 51.3
67.2
29.5 | 7 | 10 | 10 | 5 | 12 | 5 | 3.3 | G-M6 |
MSA25E
MSA25LE | 36 | 70 | 81.6
100.6 | 23.5 | 6.5 | 57 | 45 | M8x10 | 59
78 | 11 | 16 | 10 | 6 | 12 | 5.5 | 3.3 | G-M6 |
MSA 30E
MSA 30 LE | 42 | 90 | 97
119.2 | 31 | 8 | 72 | 52 M10×10 | 71.4
93.6 | 11 | 18 | 10 | 7 | 12 | 6 | 3.3 | G-M6 |
MSA 35E
MSA 35LE | 48 | 100 | 111.2
136.6 | 33 | 9.5 | 82 | 62 | M10×13 | 81
106.4 | 13 | 21 | 13 | 8 | 11.5 | 6.5 | 3.3 | G-M6 |
MSA 45E
MSA 45 LE | 60 | 120 | 137.7
169.5 | 37.5 | 10 | 100 | 80 M12×15 | 102.5
134.3 | 13 | 25 | 15 | 10 | 13.5 | 7 | 3.3 | G-PT1/8 |
MSA 55E
MSA 55LE | 70 | 140 | 162.1
200.1 | 43.5 | 13 | 116 | 95 | M14×17 | 119.5
157.5 | 19 | 32 | 17 | 11 | 13.5 | 12.4 | 3.3 | G-PT1/8 |
MSA 65E
MSA 65 LE | 90 | 170 | 198.6
2526 | 53.5 | 15 142110M16×23 | 149
203 | 21.537.5 | 23 | 1913.515.9 | 3.3 | G-PT1/8 |
Note: The basic dynamic load rating C of ball type is based on the 50 km for nomonal life. The conversion between C for 50 km and C100 for 100 km is C=1.26 x C100.
Note*: Single: Single carriage/ Double: Double carriages closely contacting with each other.

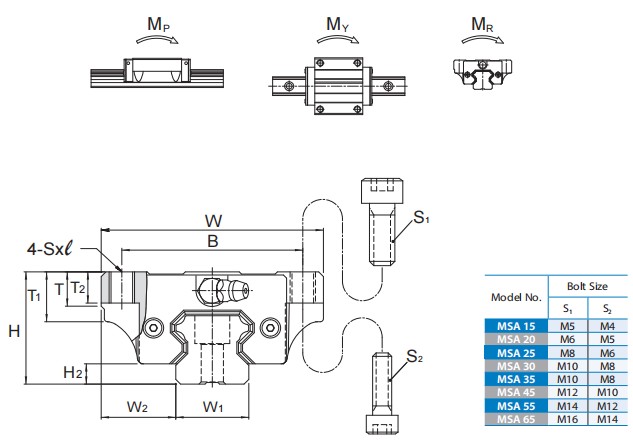

| Unit mm |
| Model No. | Rail dimension | Basicload rating | Staticmoment rating | Weight |
Width
W₁ | Height
H | Pitch
P | E
std. | D×h×d | Dynamic
C
kN | Static
C
kN | M
kN-m | M
kN-m | M
kN-m | Cariage
kg | Ral
kg/m |
| Single | Double | Single | Double |
| MSA 15E | 15 | 15 | 60 | 20 | 7.5×5.3×4.5 | 11.8 | 18.9 | 0.12 | 0.68 | 0.12 | 0.68 | 0.14 | 0.18 | 1.5 |
MSA 20E
MSA 20 LE
MSA 20TE | 20 | 18 | 60 | 20 | 9.5×8.5×6
9.5×8.5×6
11×9X7 | 19.2
23.3
13.1 | 29.5
39.3
17.2 | 0.23
0.39
0.16 | 1.42
2.23
0.54 | 0.23
0.39
0.16 | 1.42
2.23
0.54 | 0.29
0.38
0.16 | 0.4
0.52
0.23 | 2.4 |
MSA 25E
MSA 25LE | 23 | 22 | 60 | 20 | 11×9×7 | 28.1
34.4 | 42.4
56.6 | 0.39
0.67 | 2.20
3.52 | 0.39
0.67 | 2.20
3.52 | 0.48
0.63 | 0.62
0.82 | 3.4 |
MSA 30E
MSA 30 LE | 28 | 26 | 80 | 20 | 14×12×9 | 39.2
47.9 | 57.8
77.0 | 0.62
1.07 | 3.67
5.81 | 0.62
1.07 | 3.67
5.81 | 0.79
1.05 | 1.09
1.43 | 4.8 |
MSA 35E
MSA 35LE | 34 | 29 | 80 | 20 | 14×12×9 | 52.0
63.6 | 75.5
100.6 | 0.93
1.60 | 5.47
8.67 | 0.93
1.60 | 5.47
8.67 | 1.25
1.67 | 1.61
2.11 | 66 |
MSA 45E
MSA 45 LE | 45 | 38 | 105 | 22.5 | 20×17×14 | 83.8
102.4 | 117.9
157.3 | 1.81 10.67
3.13 16.95 | 1.81
3.13 | 10.67
16.95 | 2.57
3.43 | 2.98
3.9 | 11.5 |
MSA 55E
MSA 55LE | 53 | 44 | 120 | 30 | 23×20×16 | 123.6
151.1 | 169.8
226.4 | 3.13
5.40 | 17.57
28.11 | 3.13
5.40 | 1757
28.11 | 4.50
6.00 | 4.17
5.49 | 15.5 |
MSA 65E
MSA 65 LE | 63 | 53 | 150 | 35 | 26×22×18 | 198.8
253.5 | 265.3
375.9 | 6.11 33.71
11.8457.32 | 6.11
11.84 | 33.71
57.32 | 8.36
11.84 | 8.73
11.89 | 21.9 |
